Description
Excellent Sealing Performance: Undergoes rigorous sealing tests and is equipped with high-quality seals and anti-leak devices to effectively prevent liquid leakage.
Safety Design: Equipped with anti-static and lightning protection devices to ensure safety during transportation and storage.
|
Item
|
Specification
|
|
|
Tank material
|
Q235B/Carbon Steel
|
|
|
Beam material
|
Q235B/Carbon Steel
|
|
|
Frame material
|
Q345 rectangular steel
|
|
|
shape
|
Rectangular
|
|
|
Head thickness
|
6mm
|
|
|
Tank thickness
|
5mm
|
|
|
Number of warehouses
|
4 warehouses (divided into warehouses according to customer requirements)
|
|
|
Warehouse board
|
Q235B/Carbon Steel/6mm
|
|
|
Wave Breakers
|
5mm
|
|
|
Number of anti-wave boards
|
4 pieces
|
|
|
Wavebreaker
|
3mm
|
|
|
Tank mouth
|
4/European standard explosion-proof tank openings
|
|
|

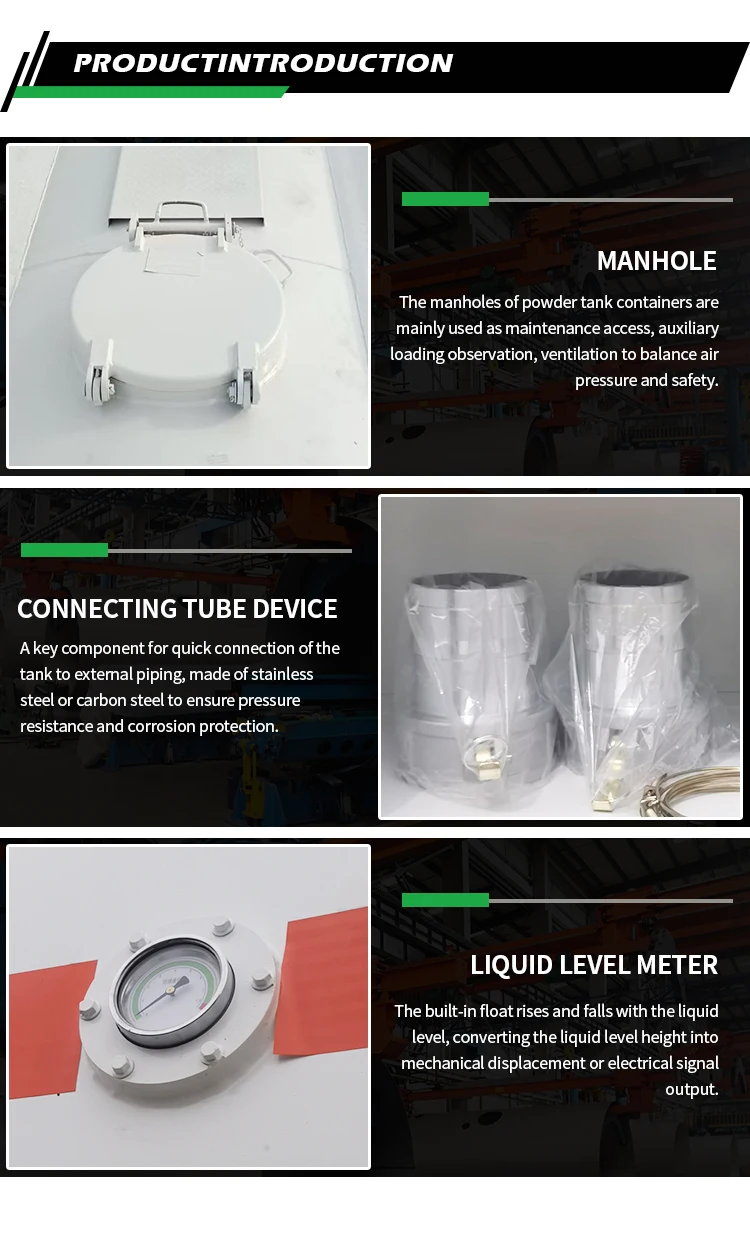

Manhole
|
DN500
|
|
|
Discharge valve
|
Four stainless steel ball valves DN80
|
|
|
Discharge hose
|
DN80, 6m*2, with male and female quick connectors
|
|
|
Discharge valve box
|
2
|
|
|
Toolbox
|
1
|
|
|
Breathing valve
|
4
|
|
|
Simple oil and gas recovery device
|
have
|
|
|
Liquid level gauge
|
Yes/4 sets (one set per warehouse)
|
|
|
Ladder
|
have
|
|
|
Top walkway
|
have
|
|

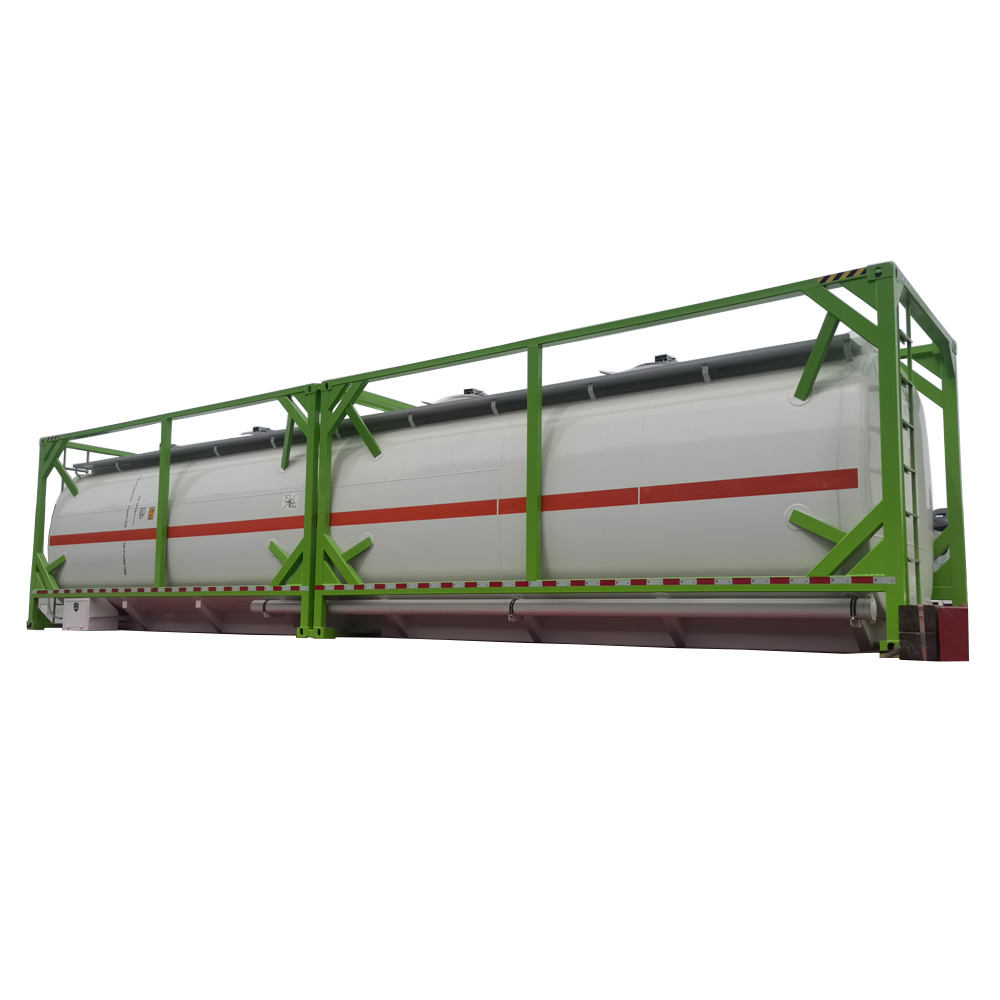

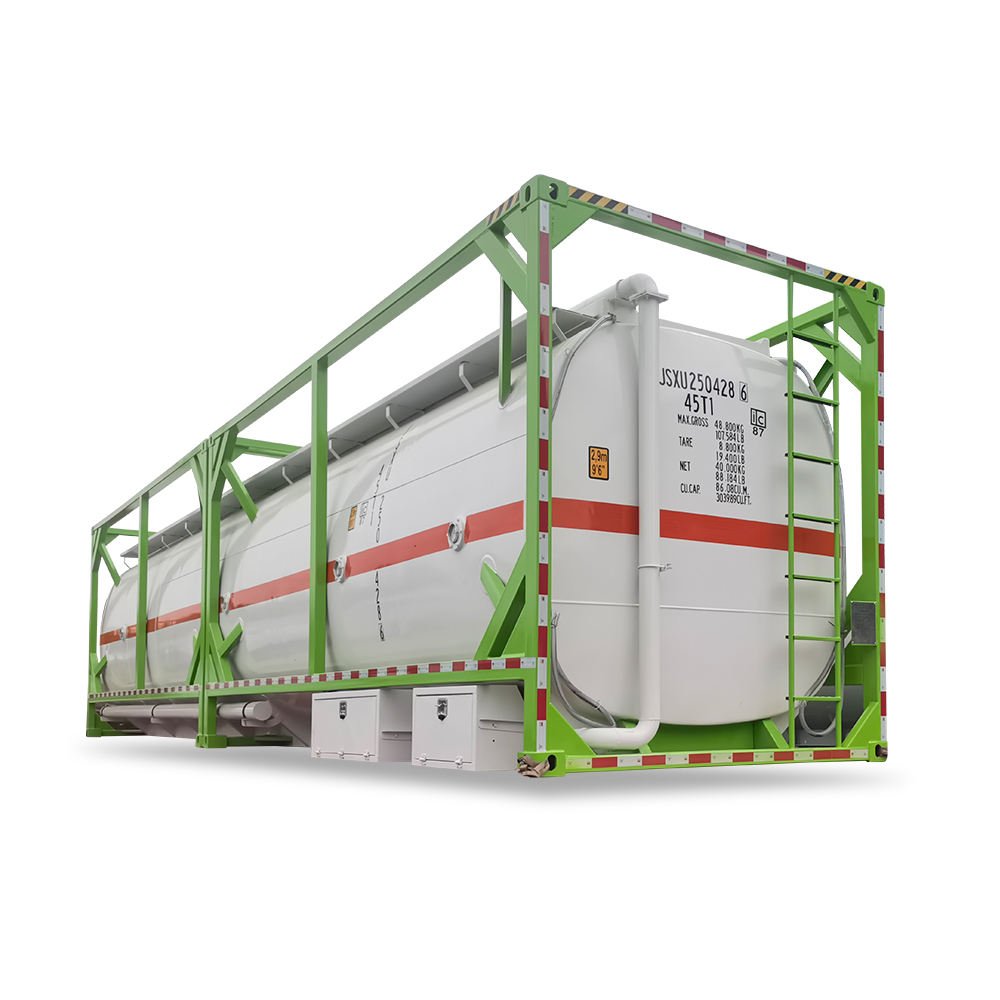

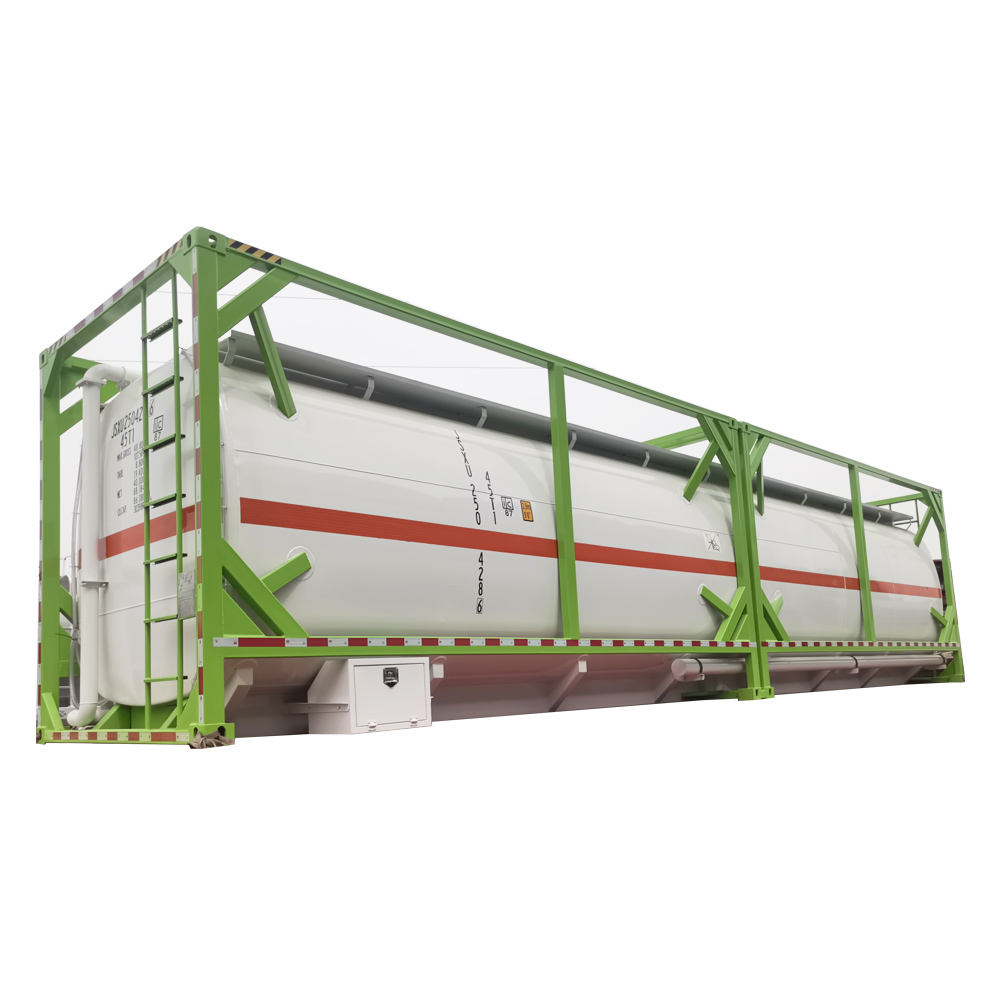

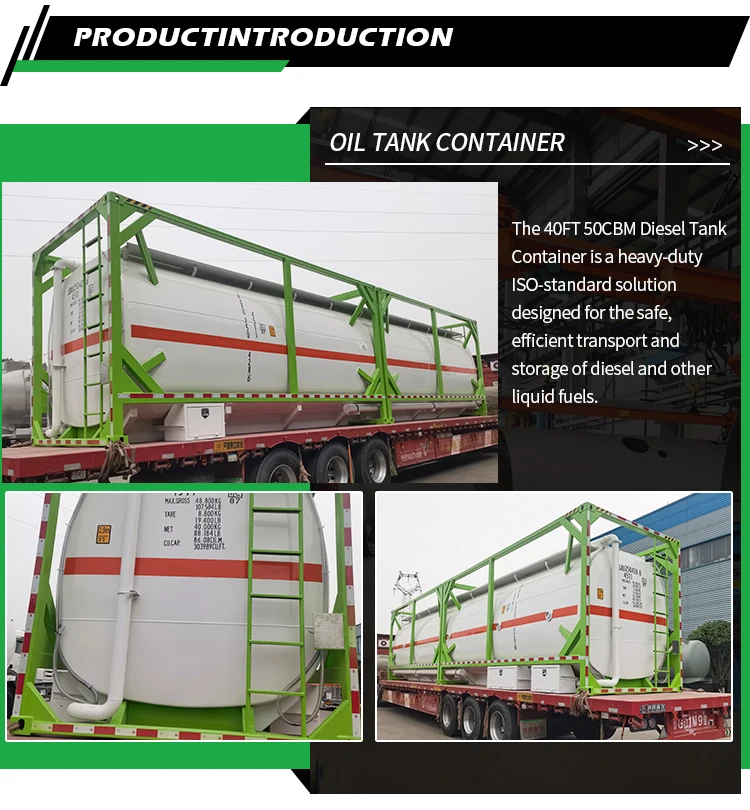

Total 50 Cubic Meters Volume: Perfect 40-foot tank container for bulk petroleum long-distance transport.
Independent Loading & Unloading Ports: Each tank room equips separate pipeline for individual liquid delivery.
Uniform Volume Distribution: Balanced 3-chamber layout avoids gravity offset during highway & sea shipping.
Thickened Q235B Carbon Steel Tank Body: Anti-corrosion & anti-rust treatment for petroleum media.
Standard 40ft ISO Container Frame: Compatible with all container ships, trains and semi-trailers globally.
Full Set Industrial Grade Oil Valves & Pipelines: Smooth liquid conveying, low failure rate.
Bottom Discharge Pipeline Layout: Fast complete discharge, no residual oil waste inside tank.
Support Left/Right Discharge Port Customization: Adapt to Latin America, Southeast Asia, Africa local transport trucks.
Custom Color & Logo Service: Tank surface paint and brand marking available as client demand.
One Container Multi-oil Transport: Replace 3 single small tanks, cut transport investment cost greatly.
Low Maintenance Cost: Simple internal structure, easy local repair without professional technicians.
Stable High Load Bearing: Max 40-ton rated load for full-load petroleum transportation.
Factory Direct Supply: No middleman markup, competitive ex-factory price with fast delivery.
12 Months Whole Tank Warranty: Global spare parts supply for valves, seals and pipelines.
