Description
cryogenic iso tanks

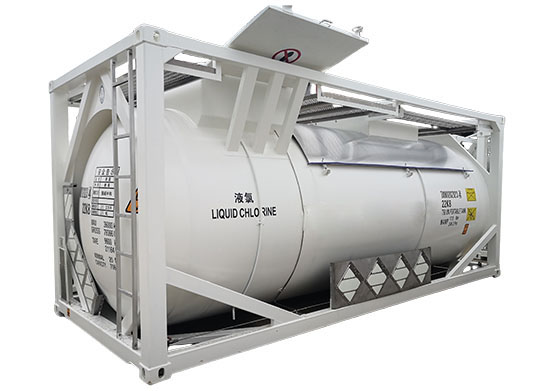

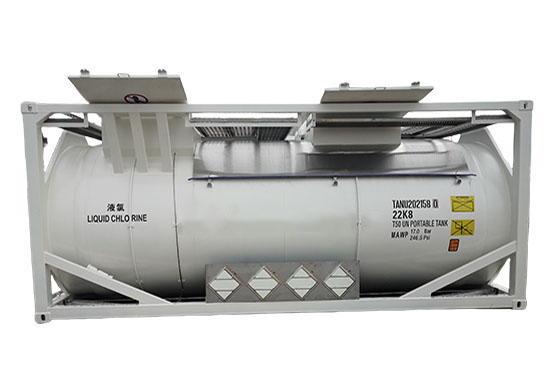

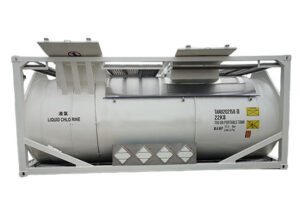

cryogenic iso tanks ASME UN Liquid Chlorine 20ft LR BV CCS Certified T50 ISO Tank Container
cryogenic iso tanks T50 ISO Tank Container Of Product description:
Safe transportation of Liquid Chlorine by road, rail, river and sea. Suitable for both domestic and international transport; Filling, draining and temporary storage or backup storage of Liquid Chlorine for different technologies. Container provides full inviolability and integrity during delivery and temporary storage of cargo. It has a solid construction, ensuring its multiple use. The container has a fixed structure, equipped with corner brackets, designed for loading, unloading, stacking and fastening.
T50 ISO Tank Container Of Product parameters:
|
Transport Medium
|
Liquid Chlorine
|
Overall Dimensions
|
6058*2438*2591mm
|
|
Vessel Size
|
Dia2425*5913mm
|
Tare weight (kg)
|
8000kg
|
|
Max Gross Weight
|
34000KG
|
Stacking Mass Weight
|
19200KG
|
|
Working Temperature
|
-40 to+50 ℃
|
Design Temperature
|
-40 to+50 ℃
|
|
Working Pressure
|
2.2MPa
|
Design Pressure
|
2.2MPa
|
|
Design External Pressure
|
-0.1MPa
|
Hydrostatic Test Pressure
|
2.93MPa
|
|
Leak Test Pressure
|
2.2MPa
|
Volume
|
24.5CBM
|
|
Joint Efficiency
|
1
|
Filling Weight Per Volume
|
1.03KG/L
|
|
Welding Specification
|
NB/T47015-2011
|
Welding Structure
|
Fully-Penetrate
|
|
Shell Material
|
Q345R
|
Shell Nominal Thickness
|
16mm
|
|
Forgings Material
|
16Mn III
|
End Plate Nominal Thickness
|
8mm
|
|
Corrosion Allowance
|
1mm
|
NED
|
100%(Shell, Head)
|
|
Pressure gauge
|
dial ≥100mm. 0~4.0MPa
|
Surface Treatment
|
Sa2.5 GB/T8923.1-2011
|
|
Insulation Methods
|
Sun-Shield
|
Design Life
|
20 Years
|
